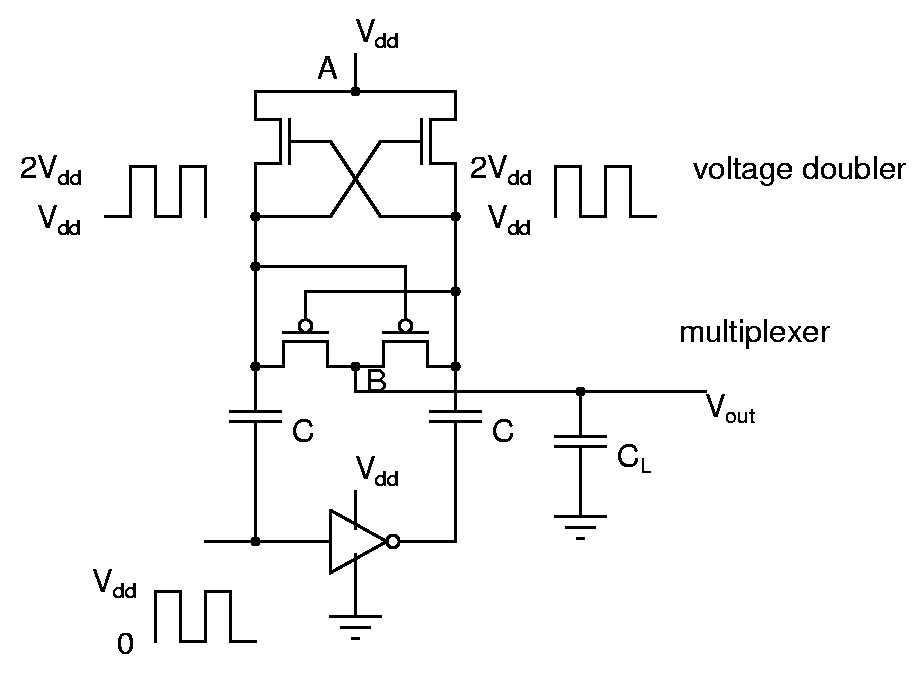

Analyze the circuit in the figure below. Determine the waveforms V_A and V_B in steady state

Transistors are added to multiplex V_A and V_B and result in V_out. Implement this circuit using CD4069 inverters. Think carefully about which terminal goes where! You'll need to use separate ICs for the inverter and the rest of the circuitry because, on a chip, the supply and ground pins are all shorted together. You can use clock frequencies in the tens of kHz range and capacitors in the 10nF range.

What is the output voltage V_out with no load(C_L)? and with a constant current load I_L?
